Cleated Livestock Trailer Flooring
Super Light Weight :: Super Strong :: Super Clean :: Super Attractive :: Super Easy to Install
:: Extends the Life of your Trailer ::
PolyCleat flooring was developed to address the issue of overweight trailer flooring. PolyCleat is stronger, lighter, more attractive, cleans easier than competing products, and will extend the life of your trailer. Given its projected lifespan, you won’t find more cost-effective flooring.
Super Light Weight
PolyCleat flooring is less than half the weight of rubber based flooring and even lighter than wood.
Rubber Flooring - 2 1/4" x 8" board = 7.4 lbs/ft
Wood Flooring - 1 5/8" x 8" equivalent* = 4.9 lbs/ft
PolyCleat Flooring - 1 5/8" x 8" board = 2.8 lbs/ft
PolyCleat flooring will save you from hauling up to 1000 lbs. of dead weight rubber wherever you go.
*2x8 wood is only 7 1/4” wide
Super Strong
PolyCleat flooring is made from our proprietary blend of industrial grade high performance polymers.
PolyCleat flooring will not crack splinter or rot and is impervious to virtually all commonly used solvents and other chemicals.
Our 3/4" tall cleats and high grip surface prevent slippage and will not wear or break off.
Super Clean
PolyCleat flooring is non-porous and will not absorb or cling to debris and manure.
Cleaning is dramatically easier than wood or rubber flooring products and can be as simple as driving through a rain storm.
Super Attractive
PolyCleat flooring is crisp and clean. Notice the lugs line up for a neat finished appearance.
Our 3/4" tall cleats and non-slip surface keep your livestock standing and comfortable.
Super Easy to Install
PolyCleat flooring cuts and drills quickly with standard woodworking tools.
Metal bracing underneath should be on 12" centers and the flooring attached every 24".
Screw placement grooves run the entire length of the plank to identify where screws should be placed so they will pass through the ribs underneath.
Planks can be placed to give an aligned pattern or an offset pattern for more or less space between cleats.
Aligned Pattern (Cows & Horses)
Offset Pattern (Cows, Pigs, Goats, Sheep)
If you have to rip boards to fit your trailer leave at least two bottom ribs on every board.
Leave a minimum of 1/2" clearance from the trailer walls at both ends of each plank.
A 12” gap (or less) between support framing under the planks is recommended.
Extends the Life of your Trailer

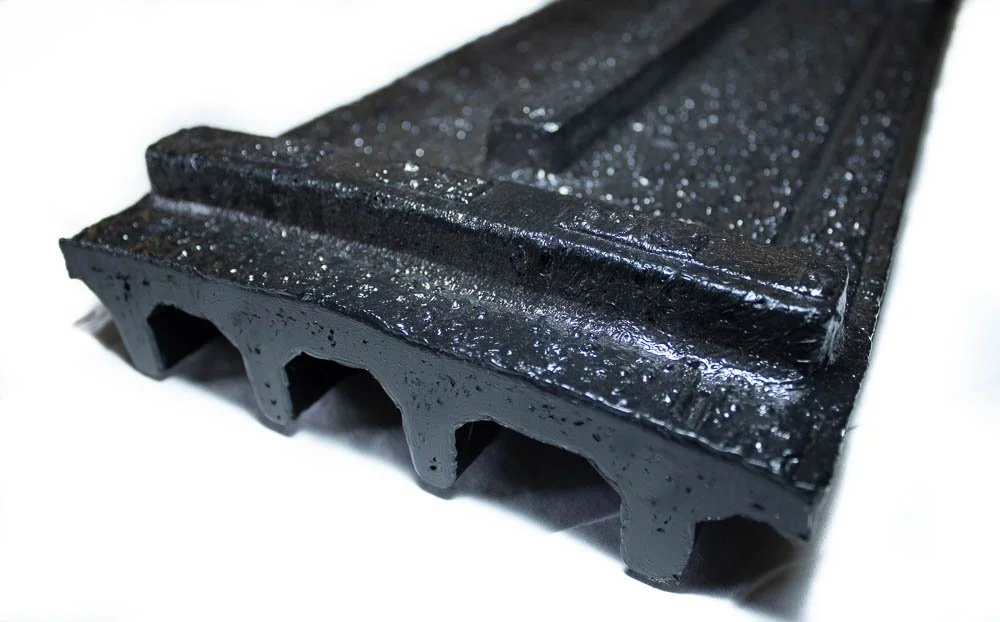

PolyCleat flooring has legs underneath so it does not lay flat on the trailer frame. Minimal contact with the metal frame reduces trapped moisture and debris that causes rust out.
Four narrow legs support the plank and reduce contact.
How to…
To purchase directly from us, or for more information on pricing & freight, fill out the form on the ‘Contact Us & Dealers’ tab or give us a call.
For help determining how many planks to order for your trailer, visit our ‘Plank Count’ tab.
For installation support, visit our ‘Installation Tips’ tab.
We also have dealers in several states that you can purchase directly from. See the bottom of our ‘Contact Us & Dealers’ tab for a listing by state.
